Clamp type ultrasonic flowmeter adopts a new external clamp design, which can obtain flow without contacting the measuring medium. Due to the advantages of clamp type flow meters, there is no need to cut off pipelines or stop equipment for a long time, saving time and labor costs. The installation and operation of ultrasonic flowmeter are simple and fast, which can achieve monitoring of flow and energy.
Manufacturer of insert type electromagnetic flowmeter
The clamp type ultrasonic flowmeter is a non-contact instrument that can measure the flow rate of media with large diameters and can also be used for measuring media that are difficult to contact and observe. It has the characteristics of simple operation, good consistency, online printing, and long battery power supply time. Almost unaffected by various parameters of the measured medium, it can especially solve the flow measurement problem of highly corrosive, non-conductive, radioactive, and flammable/explosive media that other instruments cannot.

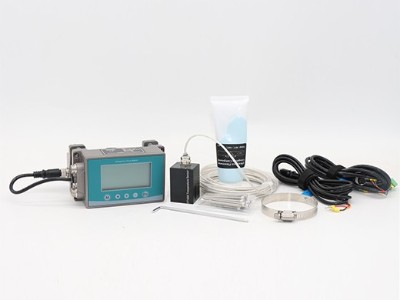

Advantages of Clamp on Ultrasonic Flow Meter Products
Compared with other traditional flow meters, ultrasonic flow meters are designed specifically for clamp type flow measurement of small pipeline sizes. It is integrated with the monitor LCD and sensors, allowing users to directly read traffic from the device. Ultrasonic flowmeter has 4-20mA Multiple outputs such as OCT pulses and RS485 Modbus can be remotely monitored in the central control room.
Clamped ultrasonic flowmeter parameters
| Applicable pipe diameter | DN15-DN40（1/2“ -1 1/2 ”） |
| precision | ±1% of the measured value |
| Flow range | ±0.1m/s～±5m/s |
| Measurable liquid | Single medium liquid |
| material | Metal /PVC, PP or PVDF rigid plastic pipe |
| Power source | 10-24V VDC |
| Data storage cycle | 300ms |
| Data memory | EEPROM (Data storage: more than 10 years, data read/write frequency: more than 1 million times) |
| Power supply protection | Power reverse connection protection, power surge protection Output short circuit protection, output surge protection |
| Output signal | 4-20mA，OCT（selectable） |
| Output mode | RS485 |
| humidness | 35-85% relative humidity (non-condensing) |
| Medium temperature | 0-75℃ |
| Ambient temperature | -10至60° C（non-freezing） |
| Class of protection | IP65 |
| Cable length | Signal cable 2m (Standard) PT1000 sensor Standard cable length 9m |
Application of Clamp on Ultrasonic Flow Meter Products
Ultrasonic flow meters are suitable for various liquids and compatible with various pipeline materials. Water treatment, food industry, pharmaceutical industry, pharmaceutical industry, petrochemical industry, metallurgical industry, public drainage system.
Install
Try not to interfere with upstream traffic distribution. Make sure there are no valves, elbows or tees; Try to install a control device or throttle valve (if available) downstream to ensure adequate pipeline flow at the measurement point,
