Digital display gas turbine flowmeter is a kind of flow measuring instrument widely used in industrial field, especially in the measurement of gas flow. With its high precision, fast response and good repeatability, it has become an indispensable tool in many industries
Manufacturer of digital display gas turbine flowmeters
The gas intelligent turbine flowmeter is a new generation of high-precision and high reliability precision measuring instrument developed in accordance with the ISO9951 standard and combined with advanced technology of flow meters at home and abroad. It integrates temperature, pressure, flow sensors, and intelligent flow integrators. Its excellent low-pressure and high-pressure measuring performance, multiple signal output methods, and low sensitivity to fluid disturbances make the flowmeter an excellent measuring instrument that can accurately measure the cumulative amount of gas.
Working principle of gas turbine flowmeter

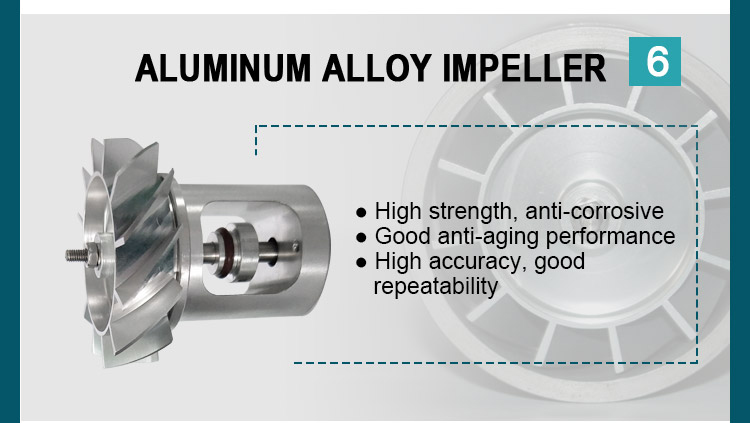

The core component of a gas turbine flowmeter is the turbine rotor. When gas flows through a flowmeter, the kinetic energy of the gas causes the turbine rotor to rotate. The speed of the turbine is directly proportional to the flow rate of the gas. The flowmeter is equipped with sensors inside, which can monitor the speed of the turbine in real time and convert it into an electrical signal, ultimately displaying the flow value.
The working principle of gas turbine flowmeter can be summarized as the following steps:
Gas inflow: Gas enters the flowmeter through the inlet.
Turbine rotation: Gas flow causes the turbine to rotate, and the speed is proportional to the flow rate.
Signal conversion: The speed of the turbine is converted into an electrical signal through sensors.
Traffic display: After processing, the electrical signal is displayed as the traffic value.
Classification of gas turbine flow meters

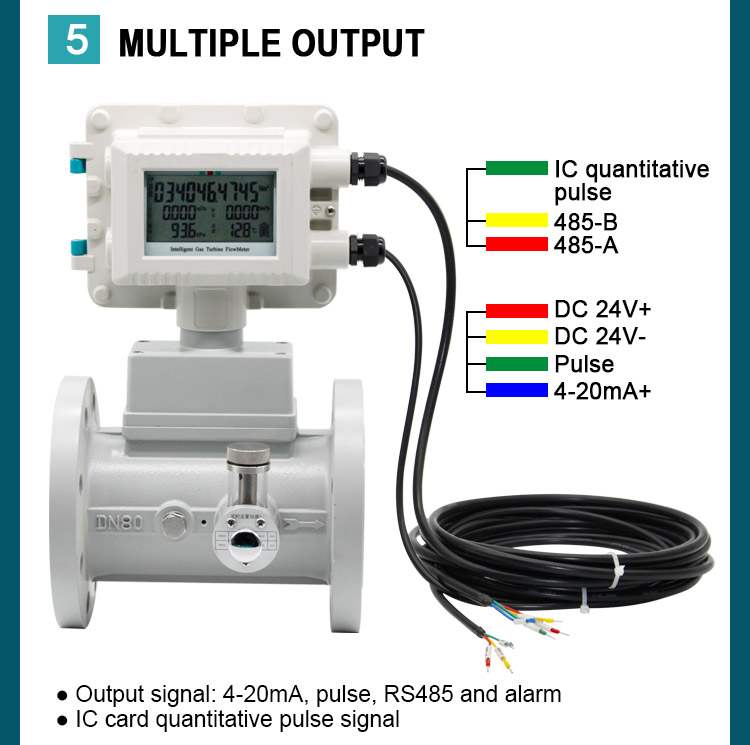

- Gas turbine flow sensor/transmitter: This type of turbine flow product itself does not have on-site display function, only transmits and outputs flow signals remotely. Flow signals can be divided into pulse signals or current signals (4-20mA); The instrument is inexpensive, highly integrated, and compact in size, making it particularly suitable for use with computer control systems such as secondary displays, PLCs, and DCS. This type of turbine flowmeter is an explosion-proof product, with an explosion-proof rating of: ExdIIBT6.。
Application scenario: It can be used as a collection instrument for working condition flow signals, transmitting flow signals remotely to the upper computer - Intelligent integrated gas turbine flowmeter

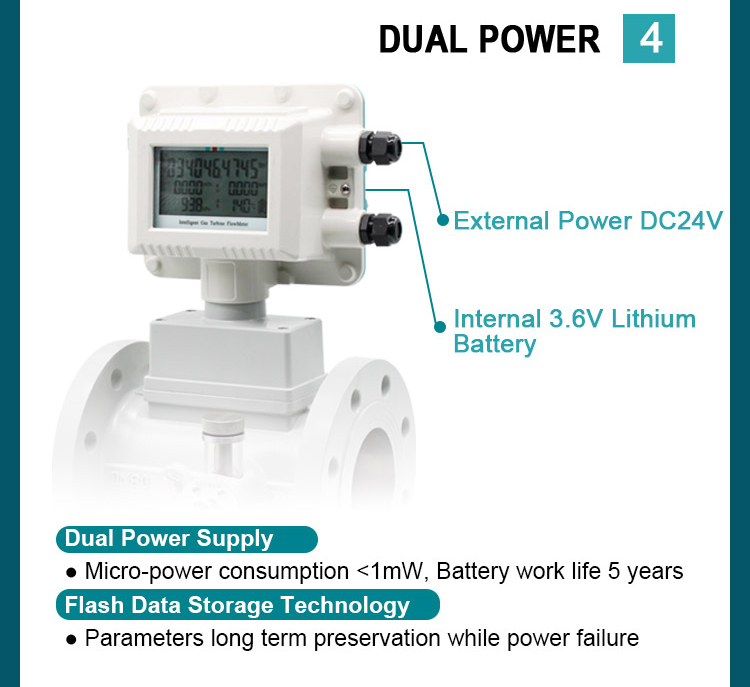

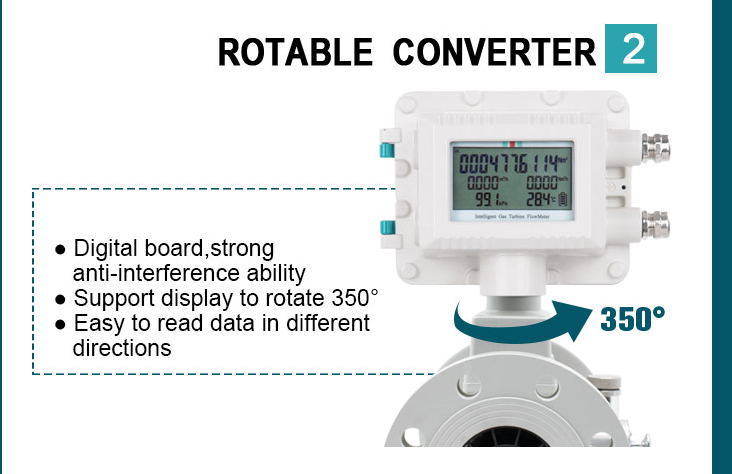

Integrated intelligent instrument, using dual row LCD on-site display, has obvious advantages such as compact mechanism, intuitive and clear reading, high reliability, no external power interference, lightning resistance, and low cost.
Application scenarios:
- As an industrial control instrument in working conditions where temperature and pressure are relatively stable.
- In working conditions where temperature and pressure are relatively stable, users can calculate the standard flow rate based on the gas equation of the instrument readings.
- Intelligent temperature and pressure compensation integrated gas turbine flowmeter

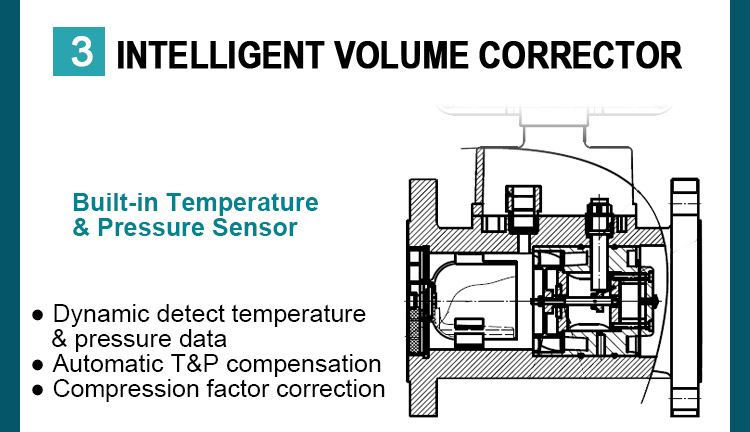

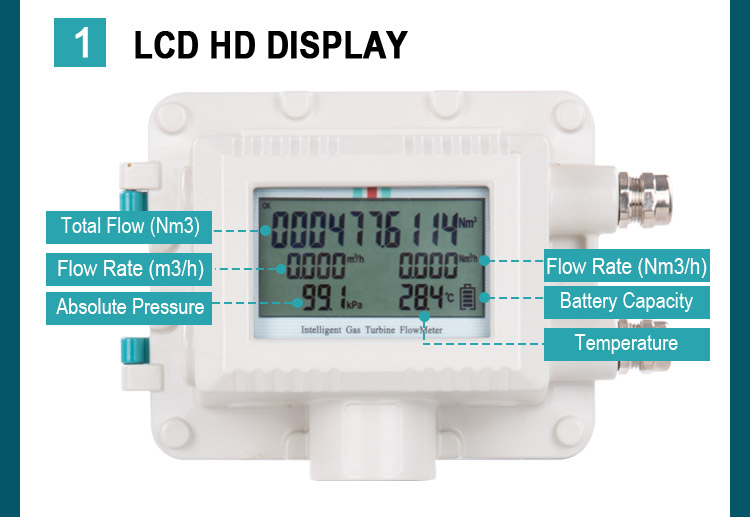

The gas turbine flowmeter is equipped with temperature and pressure sensors, as well as an intelligent flow integrator. Through a microprocessor unit, the real-time collected flow, temperature, and pressure signals are compensated for temperature and pressure according to the gas equation, and the compression factor is automatically corrected. Then, the volumetric flow rate under standard conditions is displayed intuitively.
The main applications of gas turbine flowmeter
Gas turbine flow meters are widely used in multiple industries, including but not limited to:
Oil and natural gas: used to measure the flow rate of natural gas, ensure the effective utilization of resources, and monitor safety.
Chemical industry: Accurately measuring the flow rate of gases during chemical reactions to ensure the stability and safety of the reactions.
Pharmaceutical industry: Monitor gas flow during drug production to ensure product quality.
Environmental monitoring: used to monitor exhaust emissions and help companies comply with environmental regulations.
Advantages of gas turbine flowmeter
Gas turbine flow meters have multiple advantages that make them highly favored in flow measurement:
High precision: The measurement accuracy of gas turbine flow meters is usually within ± 1%, which is suitable for situations that require high-precision flow measurement.
Quick response: The design of the turbine rotor enables the flow meter to quickly respond to flow changes, making it suitable for dynamic measurement.
Good repeatability: Under the same conditions, gas turbine flow meters can provide consistent measurement results, ensuring the reliability of data.
Wide applicability: It can be used for flow measurement of various gases, including natural gas, air, nitrogen, etc.
Precautions for gas turbine flowmeter
Although gas turbine flow meters have many advantages, the following points should still be noted during use:

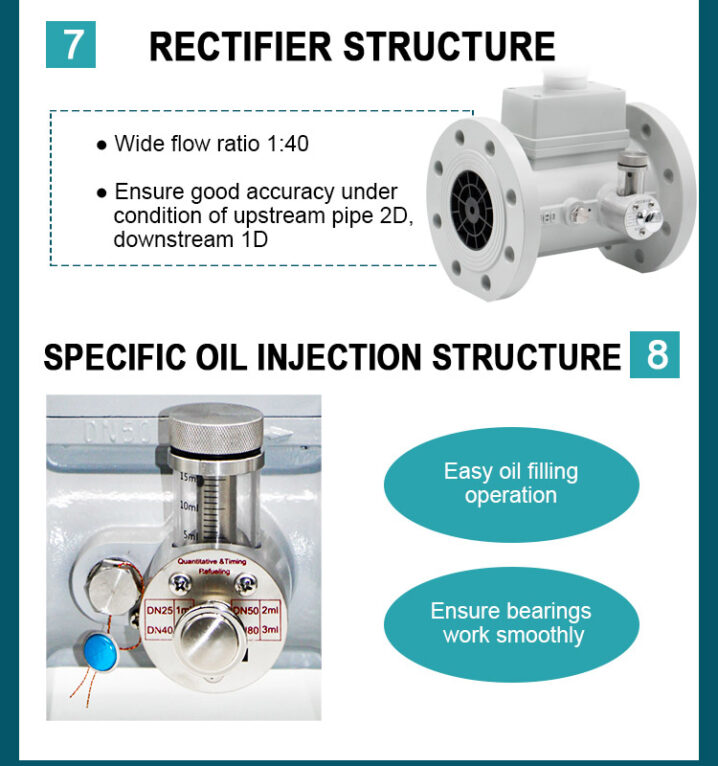

Installation position: The installation position of the flowmeter should avoid airflow interference to ensure measurement accuracy.
Fluid characteristics: Changes in temperature, pressure, and composition of the fluid may affect measurement results, so these factors need to be considered when selecting a flowmeter.
Regular calibration: In order to maintain measurement accuracy, gas turbine flow meters need to be calibrated and maintained regularly.
