The intelligent integrated electromagnetic flowmeter is an induction instrument that measures the volume flow rate of conductive medium inside a tube based on Faraday’s law of electromagnetic induction. It uses embedded technology with a microcontroller to achieve digital excitation. Electromagnetic flow meters can not only meet on-site display requirements, but also output 4-20mA current signals for recording, regulation, and control. They have been widely used in industrial technology and management departments such as chemical, environmental protection, metallurgy, medicine, papermaking, and water supply and drainage.

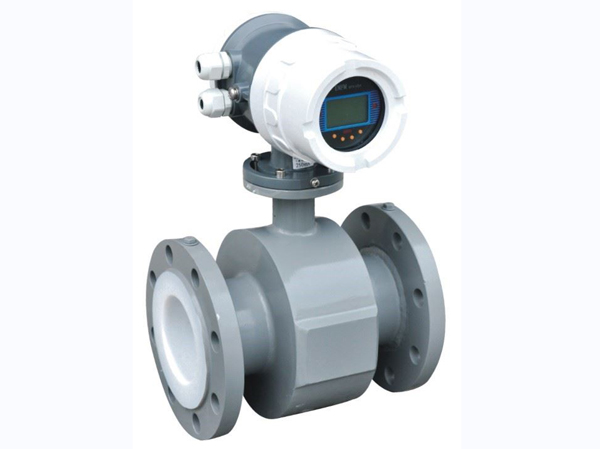

manufacturer of integrated electromagnetic flowmeter
Applicable medium: Conductive liquid
Instrument accuracy: ± 0.5%, ± 1.0%
Range ratio: 1500:1
Caliber range: DN6—DN3000mm
Instrument features: capable of measuring strongly corrosive media
Electrode materials: 316L, titanium, Hastelloy, tantalum, tungsten carbide, platinum
Lining material: Polychloroprene rubber, polytetrafluoroethylene, F46，PFA， Polyurethane rubber, silicone fluororubber
Measurement principle of integrated intelligent electromagnetic flowmeter:
The measurement principle is based on Faraday’s law of electromagnetic induction. That is, when a conductive liquid cuts magnetic field lines in a magnetic field, an induced electromotive force is generated in the conductor, and e is the magnetic field perpendicular to the flow direction through which the fluid flows when measuring the flow rate. The flow of conductive liquid induces a voltage signal proportional to the average flow velocity (i.e. volume flow rate). The induced voltage signal is detected through two electrodes in direct contact with the liquid and transmitted to the amplifier through a cable, which is then converted into a unified current output signal.
| Ambient temperature | -10—+50℃ |
| accuracy level | Pipe type: 0.5 grade, 1.0 grade |
| Temperature of the measured medium | Ordinary rubber lining: -20 – +60℃; High temperature rubber lining: -20 – +180℃ Polytetrafluoroethylene lining: -30 – +120℃; |
| Rated working pressure | DN10—DN65：2.5MPa DN80—DN150：1.6MPa. DN200—DN1200：1.0MPa DN700—DN3000：0.6MPa. |
| Output signal and load resistance | 4-20mADC,0-500Ω |
| Electrode material | Molybdenum containing stainless steel, titanium (Ti), tantalum (Ta) Hastelloy (HB) and so on |
| Class of protection | Submersible type: IP68, other: IP65 |
| Power supply | 220VAC、24VDC、3.6V Lithium battery |
| Length of straight pipe section | Pipeline type: upstream ≥5DN, downstream ≥2DN |
| Connection mode | The electromagnetic flowmeter is installed in the pipe type, and flange connections are adopted between it and the piping |
The integrated electromagnetic flowmeter has the following characteristics:
The integrated electromagnetic flowmeter has the advantage of stability, which can output standard current signals (4-20mA) for recording, adjustment, and control while meeting on-site monitoring and display requirements; Can be applied to liquid flow measurement of conductive materials in process pipelines of industries such as chemical, environmental protection, textile, metallurgy, mining, medicine, papermaking, water supply, food, sugar, brewing, etc; In addition to measuring general conductive liquids, it can also measure the flow rate of conductive liquid-solid two-phase flow, high viscosity liquids, salts, strong acids, strong bases and other liquids according to the special needs of users. Applied in chemical fiber, food, papermaking, sugar production, mining and metallurgy, water supply and drainage
- Suitable for liquid flow detection with conductivity greater than 5 μ s/cm. Changes in conductivity do not affect performance changes
- Electromagnetic flow meters have long-term high measurement accuracy and are actually not affected by fluid physical properties
- Easy to put into operation, the flowmeter is automatically set within the range of 0-10m/s, without the need to change the measurement range
- The components in contact with the tested medium have good corrosion resistance and wear resistance, and are widely applicable
- There are no movable parts or flow blocking components inside the pipeline
- The measurement results are independent of physical parameters such as flow velocity distribution, fluid pressure, temperature, density, viscosity, etc
- On site, the range can be modified online according to the actual needs of the user
- High definition backlit LCD display, Chinese menu operation, easy to use, simple to operate, easy to learn and understand
- All digital processing, strong anti-interference ability, reliable measurement, high accuracy, flow measurement range up to 150: one
- There are three integrators inside that can display the forward cumulative and reverse cumulative amounts, as well as the difference cumulative amount. There is also a non power down clock inside that can record the power down time
- There are communication signal outputs such as 4-20mA, RS485, RS232, Hart, and Modbus
- It has self checking and self judging functions
- The electromagnetic flowmeter is easy to use. After installation, simply connect the power supply without any other operation. Connect the signal line to output standard signals, which is convenient for non professionals to use. No mechanical moving parts, regular maintenance
