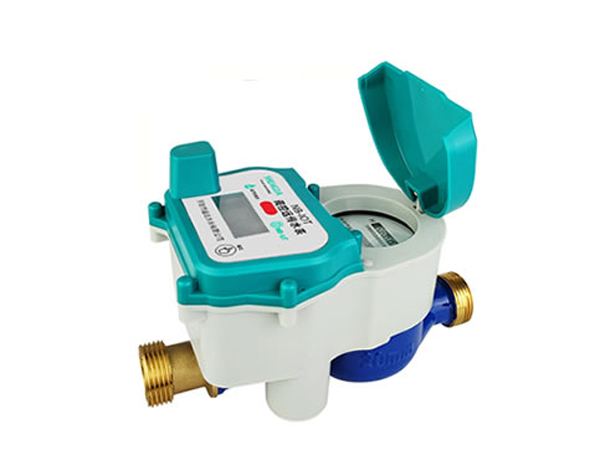

NB+IC card IoT remote water meter is based on the functions of IC card smart water meter, and the IC card electronic remote water meter adds remote management function. With the help of NB IoT module, the management party can collect at any time.

NB+IC card IoT water meter features:

1. Dual channel recharge: NB+IC card dual channel, both remote transmission and card swiping, multifunctional IoT water meter.
2. Each water meter is equipped with a telecommunications NB module, which can be used in areas with signal coverage.
3. Waterproof rating IP68.
   4 APP、 Mini program and cloud platform data maintenance.
4. Remote switch valve, remote meter reading
5. 24-hour real-time data upload
6. SMS prompt alarm
7. Large capacity batteries have a lifespan of up to 6-7 years
8. Includes 7-year data usage fee.

NB+IC card IoT water meter technical parameters:
Working voltage: 3.0V~3.6V (NB working voltage 3.3V~3.6V)
Working temperature:- 20°℃~70℃
Working humidity: 10% -90% relative humidity, no condensation
Static current: 12uA
Emission current:< 50mA (under normal circumstances)
Average static power consumption: 18uA
Upload cycle: 24 hours (adjustable)
Power supply: 3.6VER26500+HPC1520 battery (capacity 8500mAh)

NB+IC card IoT water meter features

1. Ultrasonic flow measurement technology, not affected by magnetic field interference, no mechanical rotating parts, no wear, high reliability, installed at any angle, measurement accuracy is not affected;
2. Adopting a straight pipe structure, with minimal pressure loss and no blockage;
3. Equipped with infrared and NB IoT communication interfaces, data can be uploaded on a scheduled basis for convenient network meter reading;
4. Low initial flow rate, with a minimum flow rate lower than one-third of traditional water meters and high accuracy;
5. Accumulated flow rate, instantaneous flow rate, accumulated running time and other parameters can be queried through capacitive touch buttons;
6. It has data recording function, which can save the accumulated traffic data of the past 24 months and query it. The data will not be lost in case of power failure;
7. Optional valve control function, combined with revenue system to achieve prepayment function of water meter
8. IP68 protection level, suitable for indoor and outdoor installation and use;

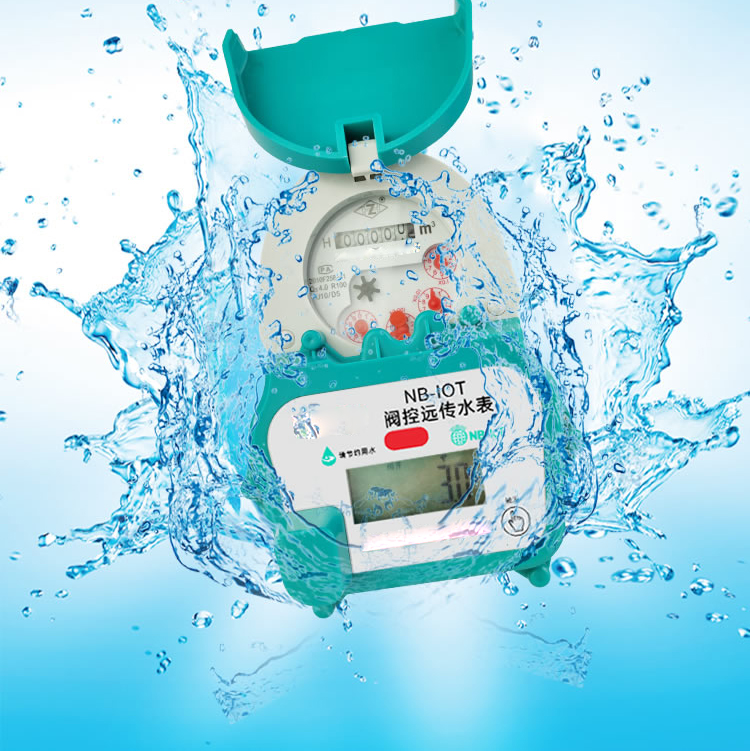

NB smart water meter is a low-power wireless remote water meter that integrates narrowband IoT technology. It remotely reads water meter readings through wireless means without the need for manual intervention. Compared with traditional pulse water meters, the NB smart water meter adopts an innovative split design, placing the electronic unit in an independent and fully sealed chamber, making installation and maintenance easier. At the same time, its waterproof rating is as high as IP68, ensuring its excellent durability.

Without changing the original structure and measurement accuracy of the mechanical water meter, NB intelligent water meter effectively reduces reading errors and achieves zero error electronic remote transmission of electromechanical conversion. Its low-power design endows the water meter with high sensitivity, high-precision measurement, low initial flow rate, strong anti-interference ability, and remote meter reading function, with a longer transmission distance.

Users can set daily or monthly reporting cycles for NB water meters through the intelligent meter reading system according to their actual needs, including cumulative water consumption, battery capacity, meter status, and reporting cycles.

The characteristics of NB water meters include:

1. Convenient maintenance: The electromechanical synchronous sensor is installed separately from the base meter, with strong interchangeability, and the battery is independently packaged for easy replacement.
2. Intuitive mechanical reading: The water meter is equipped with independent function pointers, and the installation of sensors does not affect the mechanical reading.
3. Stable and reliable signal: Utilizing NB-IOT base station networking, a stable network is established through the core network and sensors to ensure worry free signal transmission.
4. Wide coverage: Within the same frequency band, the signal strength of NB IoT far exceeds that of existing networks, expanding the coverage range by a hundred times.
5. Real time monitoring: Supports timed meter reading and can remotely send instructions to the water meter for timely handling of abnormal situations.
6. Easy installation and wiring: No need for advance wiring planning, saving installation and maintenance costs.
7. Management cost reduction: Remote meter reading improves management level and effectively reduces management costs.
8. Accurate calculation of tiered water pricing: The tiered water pricing system calculates accurately, making it convenient for management departments to charge fees.
9. Remote valve control: realize prepaid or remote control, as well as remote supply function, for departmental management convenience.
10. Automatic system time synchronization: Ensure that the entire network clock is synchronized and data is not lost.
11. Parameter customization: supports adjusting setting parameters according to operating conditions to meet diverse needs.
