STS button type integrated prepaid water meter uses encrypted 20 digit code as the transmission medium, balance alarm to prevent arrears, and can be recharged without a card. High data security and easy operation.

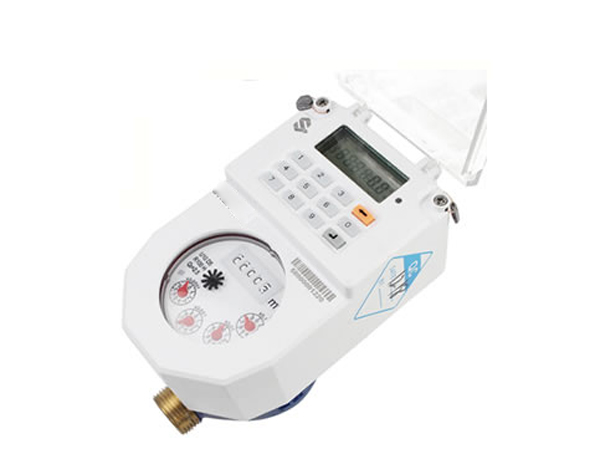

STS prepaid integrated water meter
STS prepaid keyboard integrated water meter uses encrypted 20 digit code as the transmission medium, with high data security and beautiful appearance,
Easy to operate. STS split type prepaid water meter balance alarm to prevent arrears, remote keyboard control, no card recharge. Can be used for testing water and recharging water in residential buildings, enterprises and institutions. It is an ideal metering and billing instrument for modern management of water bills and management departments.
STS prepaid keyboard integrated water meter features
- Meets STS standard requirements
- IP68 waterproof rating
Open lid detection valve control real-time clock - Power outage can store data for more than 5 years
No card recharge - Various automatic meter reading methods
- Multiple payment methods such as postpaid, prepaid, and hybrid charging
- Water fee calculation meets various requirements
Balance alarm to prevent overdue payments - Balance alarm: The alarm value can be set by entering the corresponding token.
technical parameter
Name: STS button type prepaid water meter
Environmental level: B level
Caliber: DN15-32
Electromagnetic environment level: E1
Range ratio: 80/100/160
R-value: 100
Link method: threaded link
Minimum flow rate: 0.125M ³
Display mode: LCD digital display
Maximum scale: 99999M³
Minimum reading: 0.001M³
Protection level: IP68
Host material: Copper
Pressure loss: 3.0-3.6V
Battery life: 6 years
Installation requirements: The length of the straight pipe should be 10 times the front diameter of the water meter, and the length of the straight pipe behind the water meter should be 5 times the DN,
The flow direction should be the same as the arrow direction on the main body.
