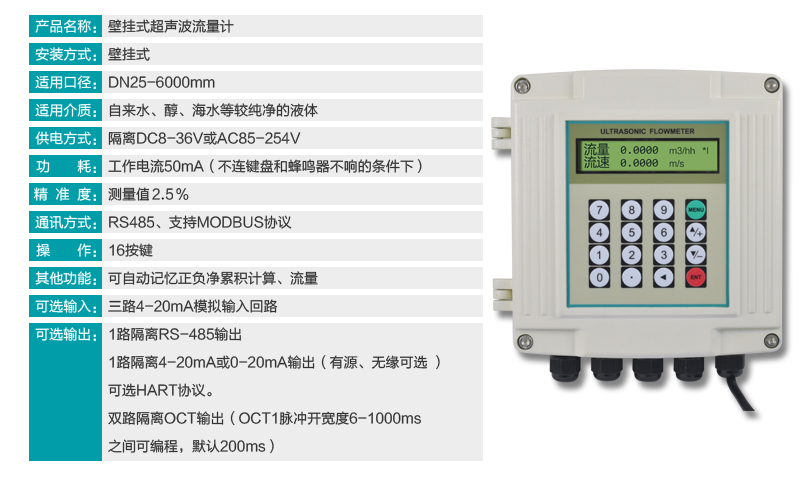

Ultrasonic calorimeter is an instrument that measures flow rate and displays the heat energy released or absorbed by water through a heat exchange system using ultrasonic methods. It measures physical quantities through two sensors – the flow rate of the heat carrier and the inlet and outlet temperatures, and then compensates and integrates density and enthalpy values to obtain the heat value. It is an electromechanical integrated product based on microprocessors and high-precision sensors. Compared with the household meters commonly used in the construction industry in the past, such as water meters, electricity meters, and gas meters, there are more complex designs and higher technological content. Ultrasonic calorimeter is a high-tech product that incorporates mechanical, electronic, and information technologies, and has been successfully applied in many fields.

Heat meter is a device that installs a pair of temperature sensors on the upstream and downstream pipes passing through the heat transfer fluid, while a flow meter is installed on the fluid inlet or return pipe (the final measurement result varies depending on the location of the flow meter installation). The flow meter emits a pulse signal proportional to the flow rate, and a pair of temperature sensors provide an analog signal representing the temperature. The integrator collects signals from the flow and temperature sensors and uses calculation formulas to calculate the heat obtained by the heat exchange system. Compared with the household meters commonly used in the construction industry in the past – water meters, electricity meters, and gas meters, it has a more complex design and higher technical content. Ultrasonic calorimeter is a high-tech product that incorporates mechanical, electronic, and information technologies, and has been successfully applied in many fields.

Working principle of ultrasonic calorimeter

The principle of ultrasonic velocity difference method (time difference method) is to measure fluid flow rate by relying on the time difference of ultrasonic signals propagating in the fluid.
When ultrasonic waves propagate in a fluid, the flow of the fluid will cause a time difference in the propagation speed of the ultrasonic signal. The magnitude of the time difference is directly proportional to the flow velocity of the fluid. Thus, the fluid flow rate can be measured.

Ultrasonic cold and hot meter structure

Ultrasonic calorimeter, including ultrasonic transducer components and measuring tubes.
It is characterized by further comprising a body, and a ball valve and a ball valve motor connected to the control are installed on the left end of the body;
Including sealing ring, spring and spring seat, spring seat and ball valve elastic top contact fit;
The rear of the ball valve is equipped with a valve seat sealing ring, and a bracket is installed inside the body. A measuring tube is installed in the middle of the bracket;
Reflective mirrors are installed on both ends of the bracket, and a meter box base is attached to the watch body. Ultrasonic transducer components are installed on the left and right sides of the attachment.
A box base is installed on the watch box, a box base cover is installed on the box base, and a thermal energy meter probe is installed inside the box base cover;
The integrator, control circuit board, and control circuit board are equipped with M-bus collector and M-bus collector bus communication interface.

Ultrasonic cold and hot meter function

1. Can be installed in both horizontal and vertical directions.
2. High temperature measurement accuracy and long service life.
3. It can measure both heat and cold, as well as measure both heat and cold simultaneously.
4. The flowmeter emits a pulse signal proportional to the flow rate.
5. A pair of temperature sensors provide analog signals indicating the high or low temperature.
6. Use the integration formula to calculate the heat obtained by the heat exchange system.

Installation points

1. Installation must be carried out under the guidance of professional personnel
2. Before installation, ensure that the appearance of the heat meter is not damaged and the temperature sensor cable is not damaged
3. Ensure that the installation pipeline is consistent with the nominal diameter of the heat meter
4. Ensure that the pipelines at both ends of the heat meter installation are on the same axis (with a deviation of no more than 5mm)
5. Ensure that the water flow direction indicated on the heat meter is consistent with the actual flow.
