Turbine flowmeter is the cornerstone of liquid and gas flow measurement. Whether it’s the raging flames of petrochemicals, the steel rush of the metallurgical industry, or the fine manufacturing of food and medicine, turbine flow meters ensure the stability and accuracy of the production process with their high precision and reliability. It is like a precise timer, recording the flow of every drop of fluid and safeguarding every aspect of industrial production.
Manufacturer of turbine flowmeter
The intelligent liquid turbine flowmeter is a new type of intelligent instrument developed using advanced ultra-low power single-chip microcomputer technology, which integrates turbine flow sensors and display integration. It has obvious advantages such as compact structure, intuitive and clear readings, high reliability, no external power interference, lightning resistance, and low cost.
The selection requirement for wireless transmission function of turbine flowmeter is a key link to ensure efficient, accurate and secure data transmission in industrial automation and remote monitoring systems. When choosing this feature, it is necessary to carefully consider the following core elements to ensure that it can meet the diverse needs of practical application scenarios.
The primary consideration is the stability and reliability of wireless transmission. This requires the wireless communication module equipped with the turbine flowmeter to have strong anti-interference ability, be able to work stably in complex electromagnetic environments, reduce packet loss and error rate during data transmission, and ensure data integrity and real-time performance.
Secondly, transmission distance and coverage range are another important consideration. According to the on-site layout and the location relationship of the monitoring center, wireless communication technologies with appropriate transmission distances, such as LoRa, NB IoT, or 4G/5G, need to be selected to achieve wide area coverage and efficient data transmission.
Furthermore, security and encryption mechanisms are indispensable. In the process of data transmission, advanced encryption algorithms and security protocols such as TLS/SSL, AES, etc. must be used to encrypt the data, prevent information leakage and illegal access, and ensure the security and privacy protection of data transmission.
In addition, power management is also a major concern. Choosing a low-power wireless communication solution, combined with intelligent wake-up and sleep mechanisms, can effectively extend the working life of the turbine flowmeter and reduce maintenance costs.
Finally, compatibility and scalability are equally important. The selected wireless transmission function should be able to seamlessly integrate with existing industrial automation systems, while reserving sufficient interfaces and protocol support for future system upgrades and functional extensions. In summary, the selection of wireless transmission function for turbine flow meters requires a comprehensive consideration of the above factors to create an efficient, safe, and reliable industrial automation data transmission system., To create an efficient, secure, and reliable industrial automation data transmission system.
Categories of turbine flow meters

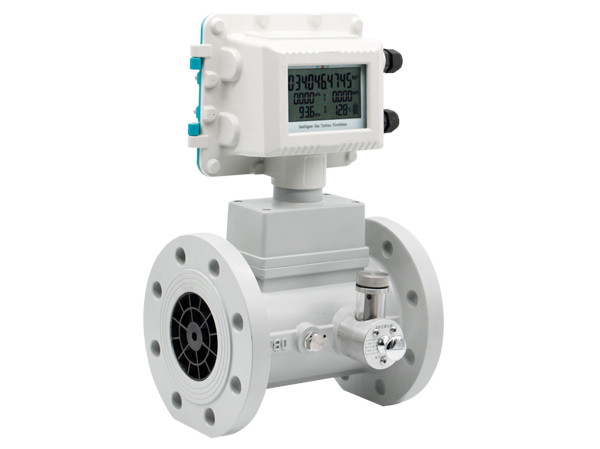

Manufacturer of digital display gas turbine flowmeters
The gas intelligent turbine flowmeter is a new generation of high-precision and high reliability precision measuring instrument developed in accordance with the ISO9951 standard and combined with advanced technology of flow meters at home and abroad. It integrates temperature, pressure, flow sensors, and intelligent flow integrators. Its excellent low-pressure and high-pressure measuring performance, multiple signal output methods, and low sensitivity to fluid disturbances make the flowmeter an excellent measuring instrument that can accurately measure the cumulative amount of gas.

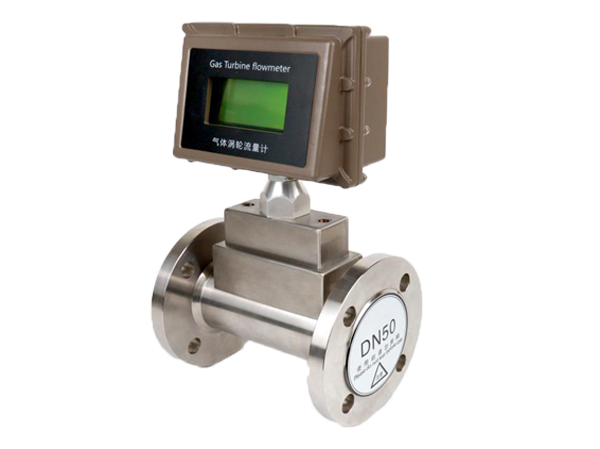

Manufacturer of gas turbine flowmeter
Nominal diameter: DN50-DN400
Function application: mainly used for trade settlement, mobile prepaid system, remote meter reading
Advantages and features: low initial flow rate, good repeatability, and low pressure loss
Applicable media: natural gas, compressed air, nitrogen, etc
Gas turbine flow meters are mainly used for measuring the flow rate of natural gas, air, nitrogen and other medium fluids in industrial pipelines. When measuring the volumetric flow rate under working conditions, they are almost unaffected by parameters such as fluid density, pressure, temperature, viscosity, etc.

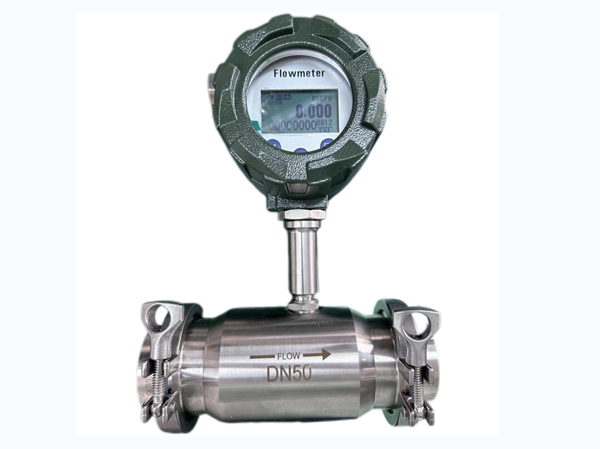

Manufacturer of clamp type liquid turbine flowmeter
Nominal diameter: DN4-DN200mm
Accuracy level: ± 1% R, ± 0.5% R, ± 0.2% R (customization required)
Instrument type: on-site display type, pulse output type, 4-20mA output type, split remote transmission display type
Applicable medium: no impurities, low viscosity, no strongly corrosive liquids
Clamp type liquid turbine flowmeter is a precision flow measurement instrument that can be used to measure the flow rate and total amount of liquid when paired with corresponding flow integrator instruments. Widely used in the fields of petroleum, chemical, metallurgy, scientific research and other metrology and control systems. The clamp type liquid turbine flowmeter sensor equipped with sanitary fittings can be applied in the pharmaceutical industry.
Manufacturer of explosion proof type liquid turbine flowmeter
Nominal diameter: DN4-DN200mm
Accuracy level: ± 1% R, ± 0.5% R, ± 0.2% R (customization required)
Instrument type: on-site display type, pulse output type, 4-20mA output type, split remote transmission display type
Applicable medium: no impurities, low viscosity, no strongly corrosive liquids
Explosion proof liquid turbine flowmeter is generally used to measure flammable and explosive liquids such as diesel and gasoline. It has the characteristics of simple structure, light weight, high accuracy, good reproducibility, sensitive response, easy installation, maintenance and use. It is widely used in lubricants, vegetable oils, diesel, petroleum, and other petroleum products.
Manufacturer of flange type turbine flowmeter
Nominal diameter: DN4-DN200mm
Accuracy level: ± 1% R, ± 0.5% R, ± 0.2% R (customization required)
Instrument type: on-site display type, pulse output type, 4-20mA output type, split remote transmission display type
Applicable medium: no impurities, low viscosity, no strongly corrosive liquids
LWGY liquid flange turbine flowmeter (composed of turbine flow sensor and display instrument). Sensors have the characteristics of high accuracy, good repeatability, and simple operation. It can be widely used in industries such as petroleum, chemical, metallurgy, papermaking, pharmaceuticals, food and beverage to measure the instantaneous flow rate and total volume of liquids.

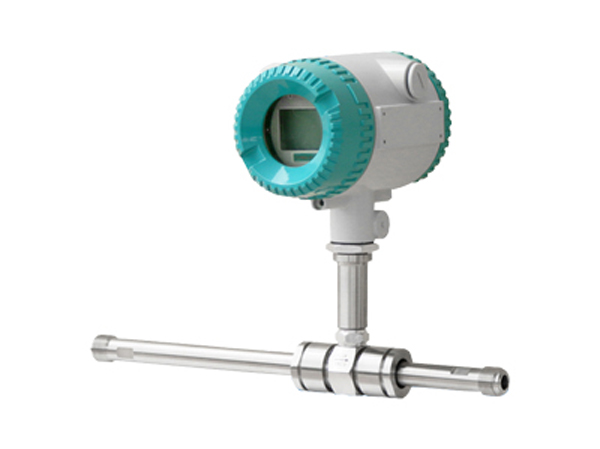

Manufacturer of threaded connection liquid turbine flowmeter
Threaded connection turbine flowmeter is the main type of velocity flowmeter. When the measured fluid flows through the turbine flowmeter sensor, the impeller rotates under the action of the fluid, and its speed is proportional to the average flow velocity of the pipeline. At the same time, the blades periodically cut the magnetic field lines generated by the electromagnet, changing the magnetic flux of the coil. According to the principle of electromagnetic induction, a pulsating electric potential signal, namely an electric pulse signal, is induced in the coil. The frequency of this electric pulse signal is proportional to the flow rate of the measured fluid.
Turbine flowmeter parameter
| enforce standards | Turbine Flow Sensor (JB/T9246-1999) |
| Meter diameter (mm) and connection method | 4, 6, 10, 15, 20, 25, 32, 40 threaded connection (15, 20, 25, 32, 40)50, 65, 80, 100, 125, 150, 200 flange connection |
| accuracy level | ±1%R、±0.5%R、±02%R(Require special order) |
| Range ratio | 1:10 1:15 1:20 |
| Sensor material | 304Stainless steel、316(L)Stainless steel |
| Conditions of use | Medium temperature: – 20 ℃ ~ + 120 ℃ ambient temperature: – 20 ℃ ~ + 60 ℃ relative humidity: 5% ~ 90%, atmospheric pressure of 86 kpa to 106 kpa |
| Signal output function | Pulse signal :4~20mA signal |
| Communication output function | RS485 communication, HART protocol, etc |
| Working power supply | A, external power supply :+24VDC±15%, ripple ≤±5%, suitable for 4~20mA output, pulse output, RS485, etc. B, internal power supply :1 set of 3.0V 10AH lithium battery, battery voltage at 2.0V~3.0V can work normally. |
| Signal line interface | Basic model: Hausmann connector or three-core cable; Explosion-proof type: internal thread M20x1.5 |
| Explosion-proof class | ExiallCT4 or ExdiBT6 |
| Class of protection | IP65 or higher (customizable) |
测量范围及工作压力
| Instrument diameter (mm) | Normal flow range (m3/h) | Extended flow range (m3/h) | Conventional connection and voltage rating | Special pressure rating (MPa) (flange clamp) |
| DN4 | 0.04~0.25 | 0.04~0.4 | Threaded connection /6.3MPa | 10、16、25 |
| DN6 | 0.1~0.6 | 0.06~0.6 | Threaded connection /6.3MPa | 10、16、25 |
| DN10 | 0.2~1.2 | 0.15~1.5 | Threaded connection /6.3MPa | 10、16、25 |
| DN15 | 0.6~6 | 0.4~8 | Threaded connection /6.3MPa | 4.0、6.3、10、16、25 |
| Flange connection 2.5MPa | ||||
| DN20 | 0.8~8 | 0.45~9 | Threaded connection /6.3MPa | 4.0、6.3、10、16、25 |
| Flange connection 2.5MPa | ||||
| DN25 | 1~10 | 0.5~10 | Threaded connection /6.3MPa | 4.0、6.3、10、16、25 |
| Flange connection 2.5MPa | ||||
| DN32 | 1.5~15 | 0.8~15 | Threaded connection /6.3MPa | 4.0、6.3、10、16、25 |
| Flange connection 2.5MPa | ||||
| DN40 | 2~20 | 1~20 | Threaded connection /6.3MPa | 4.0、6.3、10、16、25 |
| Flange connection 2.5MPa | ||||
| DN50 | 4~40 | 2~40 | Flange connection 2.5MPa | 4.0、6.3、10、16、25 |
| DN65 | 7~70 | 4~70 | Flange connection 2.5MPa | 4.0、6.3、10、16、25 |
| DN80 | 10~100 | 5~100 | Flange connection 2.5MPa | 4.0、6.3、10、16、25 |
| DN100 | 20~200 | 10~200 | Flange connection 2.5MPa | 2.5、4.0、6.3、10、16、25 |
| DN125 | 25~250 | 13~250 | Flange connection 2.5MPa | 4.0、6.3、10、16、25 |
| DN150 | 30~300 | 15~300 | Flange connection 2.5MPa | 4.0、6.3、10、16、25 |
| DN200 | 80~800 | 40~800 | Flange connection 2.5MPa | 4.0、6.3、10、16、25 |
Product description of turbine flowmeter
★ Low pressure loss, impeller with anti-corrosion function;
Adopting advanced ultra-low power single-chip microcomputer technology, the whole machine has strong functions, low power consumption, and superior performance.
Intelligent flow display with non-linear accuracy compensation function. The accuracy of the correction formula is better than ± 0.02%
The instrument coefficient can be set online by buttons and displayed on the LCD screen, which is intuitive, clear, and highly reliable
★ Adopting EEPROM for power down protection of accumulated flow and instrument coefficient, with a protection time greater than 10 years
★ Adopting high-performance MCU central processing unit to complete data acquisition, processing, display output, cumulative flow, instantaneous flow, etc
★ Convenient human-machine interface implementation with standard 485 format for data transmission.
★ Adopting fully hard alloy (tungsten carbide) shielded cantilever beam structure bearings, integrating rotating bearings and pressure bearings, greatly improving the bearing life, and can work in media with a small amount of sediment and dirt.
★ Adopting 1Cr18Ni9Ti all stainless steel structure, (turbine adopts 2Cr13) with good anti-corrosion performance.
★ Easy to repair, with a self rectifying structure, small and lightweight, simple structure, can be combined and disassembled in a short time,
★ Easy internal cleaning.
★ Strong resistance to magnetic interference and vibration, reliable performance, and long lifespan
★ Low lower limit flow rate, wide measurement range,
★ On site display LCD screen has clear and intuitive display, low power consumption, and can run continuously for more than 5 years with 3V lithium battery power supply,
★ Corrosion resistant, suitable for acidic and alkaline solutions.
Application scenarios of turbine flowmeter
Turbine flow meters are suitable for various occasions, mainly including the following aspects:
Industrial processes: Turbine flowmeters are widely used for flow measurement in industries such as petrochemicals, metallurgy, power, and environmental protection. It is suitable for measuring the flow rate of most liquid media, including water, oil, gas, chemical media, etc.
High viscosity medium: Turbine flowmeter can measure fluids with viscosity in the range of 0.5-20000mPa · s, suitable for flow measurement of high viscosity media.
High temperature and high pressure conditions: Turbine flow meters can be used for flow measurement under high temperature, high pressure, and low temperature conditions. It can be applied to media with temperatures up to+750 ℃ or pressures up to+42Mpa or below.
Gas measurement: Turbine flow meters are particularly suitable for measuring the volumetric flow rate of gases, with high accuracy and good repeatability, and are suitable for situations with large flow rates.
Intelligent liquid measurement: The intelligent liquid turbine flowmeter adopts advanced ultra-low power single-chip microcomputer technology, which has the advantages of compact structure, intuitive and clear reading, high reliability, no external power interference, lightning resistance, and low cost. It is widely used in the fields of petroleum, chemical, power, gas pipeline network, urban gas, etc., and is widely used in trade settlement.
